Field Types
RFE Forms has committed to the schema used by the AMPATH Forms, and as such, there is a high level of compatibility. RFE Forms supports almost all the field types from AMPATH’s schema with a few extensions. The most commonly used fields include text, textarea, number, date and select.
Field types are defined in the questionOptions definition of a question using the following syntax:
{
"questionOptions": {
"rendering": "" // field type goes here
}

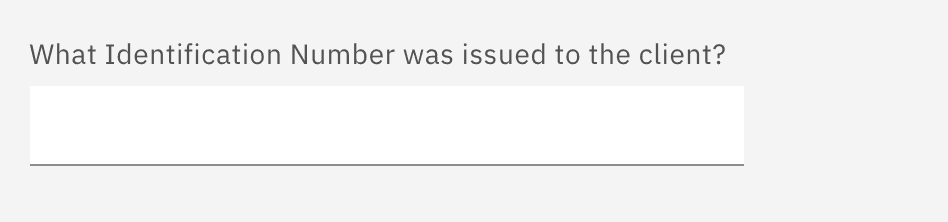

}text
Renders a text input.
{
"label":"What Identification Number was issued to the client?",
"type":"obs",
"questionOptions":{
"rendering":"text",
"concept":"162576AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA"
},
"id":"patientIdentificationNumber"
}Renders:

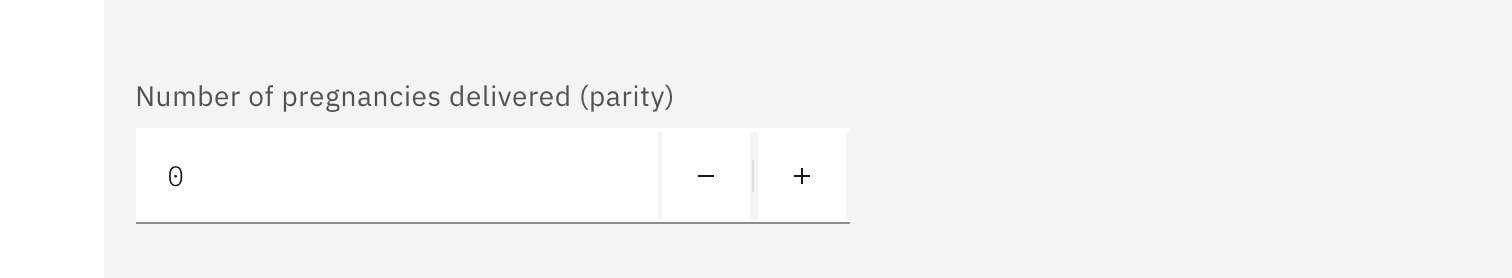

number
Renders a number input
{
"label":"Number of pregnancies delivered (parity)",
"type":"obs",
"id":"noDelivery",
"questionOptions":{
"concept":"a899a920-1350-11df-a1f1-0026b9348838",
"rendering":"number"
},
"validators":[
]
}Renders:
select
Renders as a dropdown list
{
"label":"What is the reason for conducting the HIV test?",
"type":"obs",
"questionOptions":{
"rendering":"select",
"concept":"ce3816e7-082d-496b-890b-a2b169922c22",
"answers":[
{
"concept":"7398c91a-8db8-480d-8130-1a92cc208ded",
"label":"Inconclusive HIV Result"
},
{
"concept":"a6ad599d-2bc4-47b7-81fe-a38e88867c1d",
"label":"Self Initiative"
},
{
"concept":"0e65e5fd-a1d8-4730-a991-75a1d703cba6",
"label":"HIV Self Test Positive"
},
{
"concept":"6e768c50-a239-45ff-9920-2c6a9352320e",
"label":"Index Client Testing"
},
{
"concept":"cb099534-b609-4561-9d4c-dd2fc74cedaf",
"label":"Assisted Partner Notification (APN)"
},
{
"concept":"5622AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Other"
}
]
},
"id":"reasonForTesting"
}Renders:

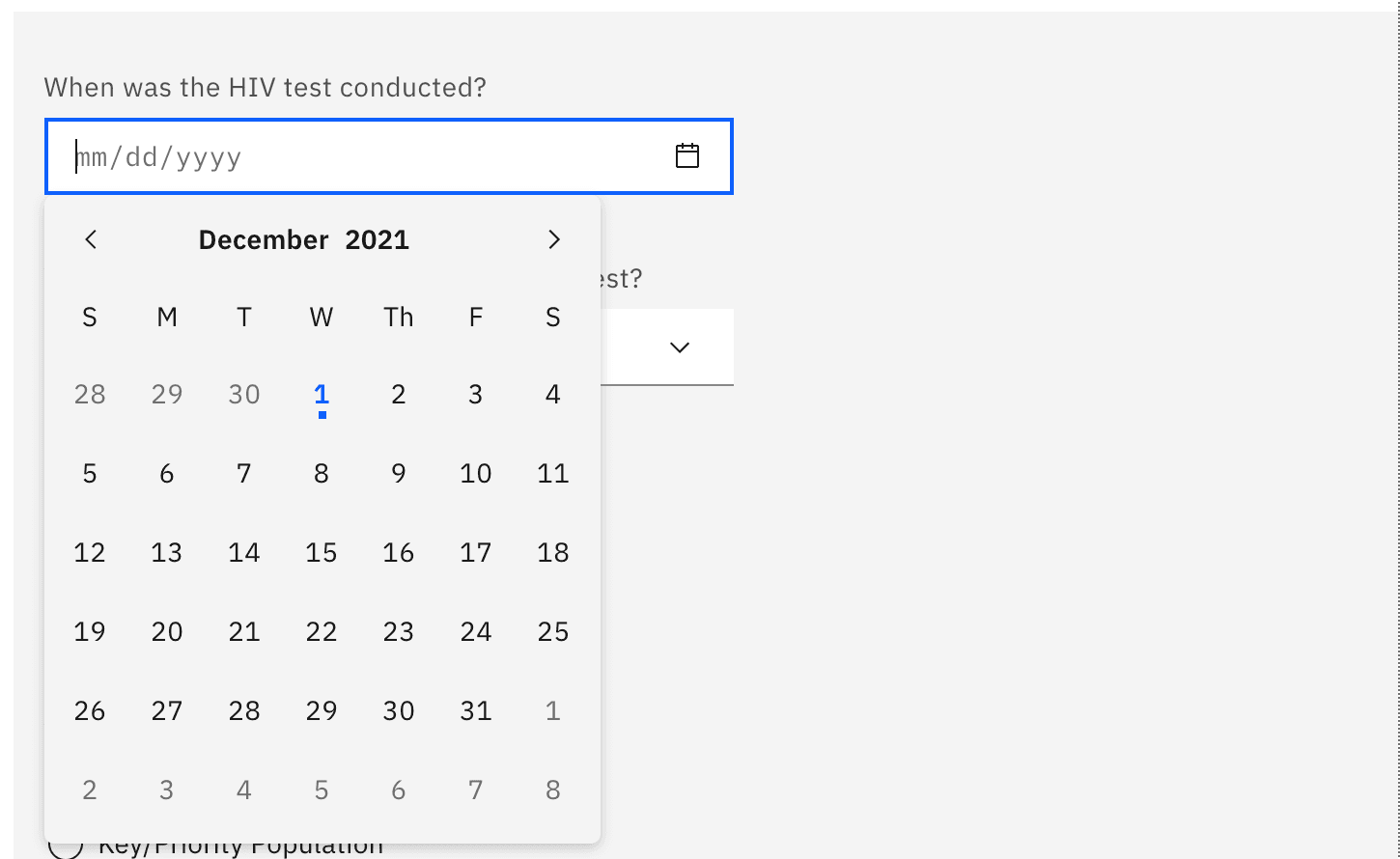

date
Renders as date input. When clicked, the input reveals a date picker with current date as the default value.
{
"label":"When was the HIV test conducted?",
"type":"obs",
"questionOptions":{
"rendering":"date",
"concept":"164400AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"weeksList":""
},
"validators":[
{
"type":"date",
"allowFutureDates":"false"
},
{
"type":"js_expression",
"failsWhenExpression":"myValue < '1/1/1980'"
}
],
"id":"dateTestPerformed"
}Renders:

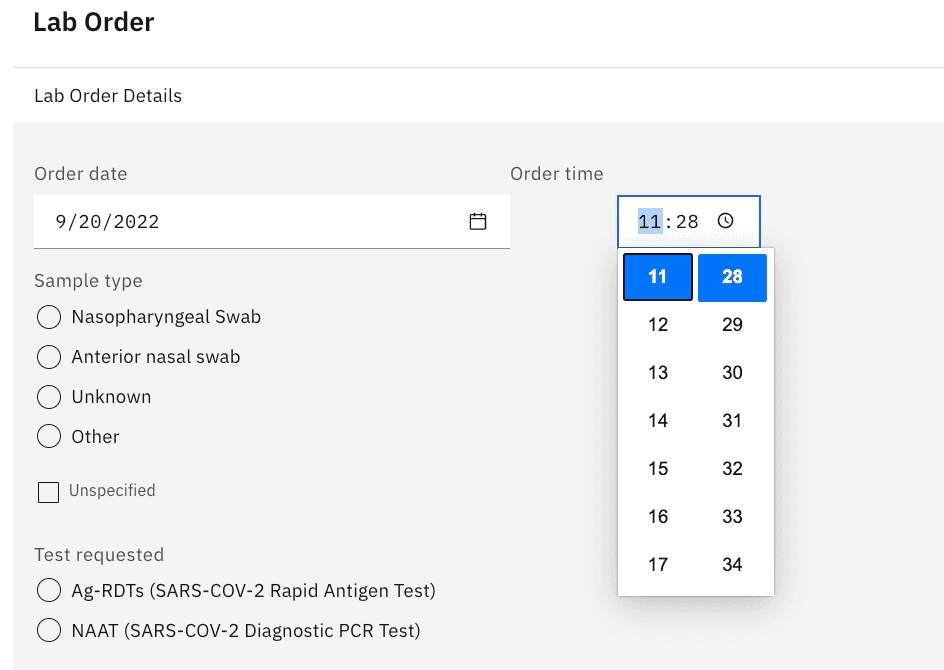

datetime
Renders the date input with a time picker beside it. When clicked, the input will reveal a time picker with the current time as the default value. The time picker is disabled only until a date is provided
{
"label": "Order date",
"type": "obs",
"questionOptions": {
"rendering": "datetime",
"concept": "162078AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"weeksList": "",
"conceptMappings": [
{
"type": "CIEL",
"value": "162078"
}
]
},
"id": "orderDate"
}Renders:

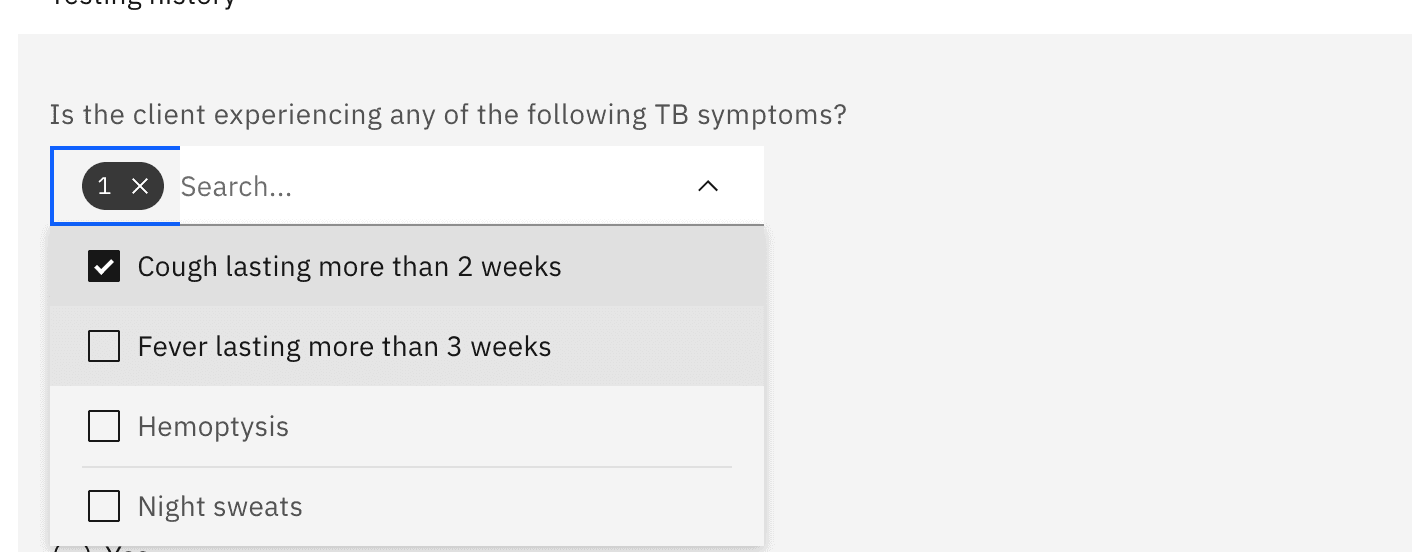

checkbox
Renders like a multi-choice select field. This kind of field lets you select more that one option.
{
"label":"Is the client experiencing any of the following TB symptoms?",
"type":"obs",
"questionOptions":{
"rendering":"checkbox",
"concept":"159800AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"answers":[
{
"concept":"1494AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Fever lasting more than 3 weeks"
},
{
"concept":"159799AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Cough lasting more than 2 weeks"
},
{
"concept":"138905AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Hemoptysis"
},
{
"concept":"133027AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Night sweats"
}
]
},
"id":"tbSymptoms"
}Renders:

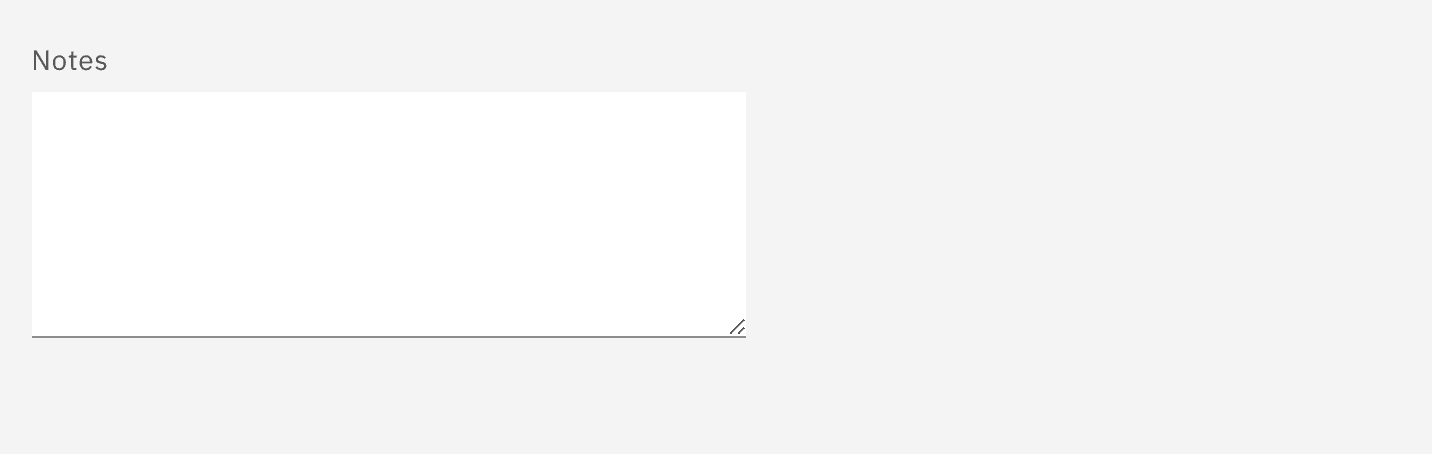

textarea
Renders a textarea input. By default, the textarea will be 4 rows tall. You can configure the number of visible text lines for the input by providing a number to the rows property in your questionOptions definition.
{
"label":"Notes",
"type":"obs",
"questionOptions":{
"rendering":"textarea",
"concept":"161011AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"rows":"5"
},
"id":"notes"
}Renders:

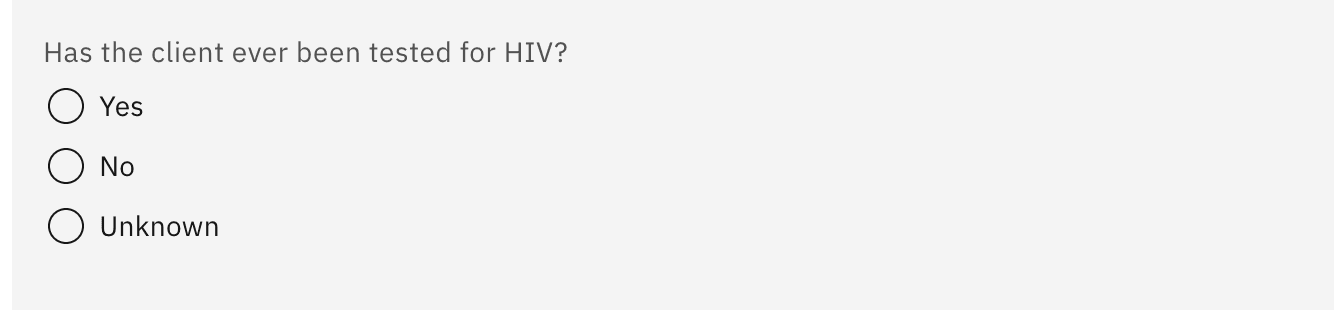

radio
Renders a radio input. A radio input allows users to select an option from a list. All options are displayed at the same time and only one option from the available choices can be selected.
{
"label":"Has the client ever been tested for HIV?",
"type":"obs",
"questionOptions":{
"rendering":"radio",
"concept":"1492AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"answers":[
{
"label":"Yes",
"concept":"cf82933b-3f3f-45e7-a5ab-5d31aaee3da3"
},
{
"label":"No",
"concept":"488b58ff-64f5-4f8a-8979-fa79940b1594"
},
{
"concept":"1067AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Unknown"
}
]
},
"id":"everTestedForHIV"
}Renders:

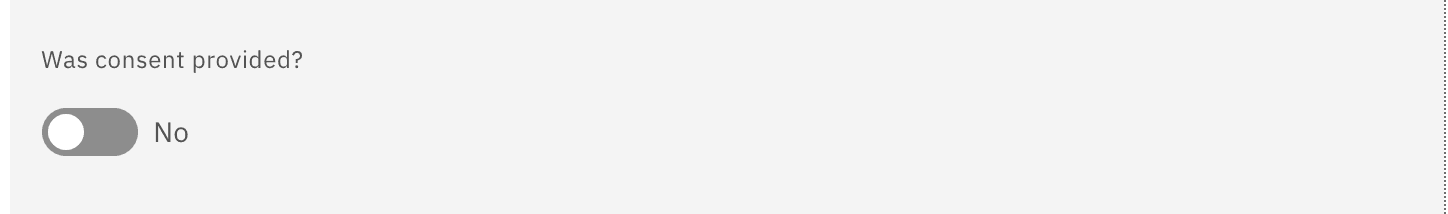

toggle
Renders a toggle input. This type of control is suitable for collecting boolean values. By default, it’s set to false
{
"label":"Was consent provided?",
"type":"obs",
"questionOptions":{
"rendering":"toggle",
"concept":"976ca997-fb2b-4bef-a299-f7c9e16b50a8",
"toggleOptions":{
"labelTrue":"Yes",
"labelFalse":"No"
},
"conceptMappings":[
],
"answers":[
{
"label":"Yes",
"concept":"cf82933b-3f3f-45e7-a5ab-5d31aaee3da3"
},
{
"label":"No",
"concept":"488b58ff-64f5-4f8a-8979-fa79940b1594"
}
]
},
"id":"recencyTestingConsent"
}Renders:

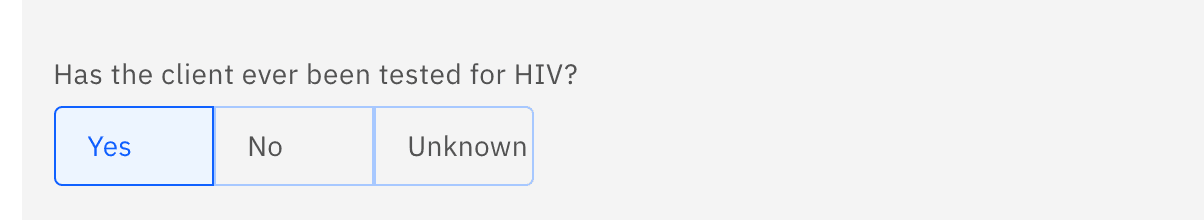

content-switcher
This is a custom single select control from Carbon.
{
"label":"Has the client ever been tested for HIV?",
"type":"obs",
"questionOptions":{
"rendering":"content-switcher",
"concept":"1492AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"answers":[
{
"label":"Yes",
"concept":"cf82933b-3f3f-45e7-a5ab-5d31aaee3da3"
},
{
"label":"No",
"concept":"488b58ff-64f5-4f8a-8979-fa79940b1594"
},
{
"concept":"1067AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Unknown"
}
]
},
"id":"everTestedForHIV"
}Renders:
fixed-value
Think of this as a hidden HTML input. In some cases, a form needs to a persist a predefined non-mutable value on submission.
This happens for example on instances where multiple forms operate on the same encounter, and where the status of that encounter changes based on the form submitted — for example a lab encounter. A lab request form would set its status to Pending, and when a result comes in, the status becomes Complete.
{
"label":"Status",
"type":"obs",
"questionOptions":{
"rendering":"fixed-value",
"concept":"6681366c-2174-489a-b951-13a1404935bf",
"answers":[
{
"concept":"162866AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Pending status"
},
// ...
]
},
"id":"status",
"behaviours":[
{
"intent":"*",
"hide":{
"hideWhenExpression":"false"
},
"value":"162866AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA"
},
{
"intent":"COVID_LAB_ORDER_EMBED",
"hide":{
"hideWhenExpression":"true"
}
}
]
}The value is driven by form behaviour which is defined by user intent. The default (*) behaviour sets the value to 162866AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA (Pending status). When this form is loaded with the COVID_LAB_ORDER_EMBED intent, no observation will be created because the field is evaluated as isHidden.

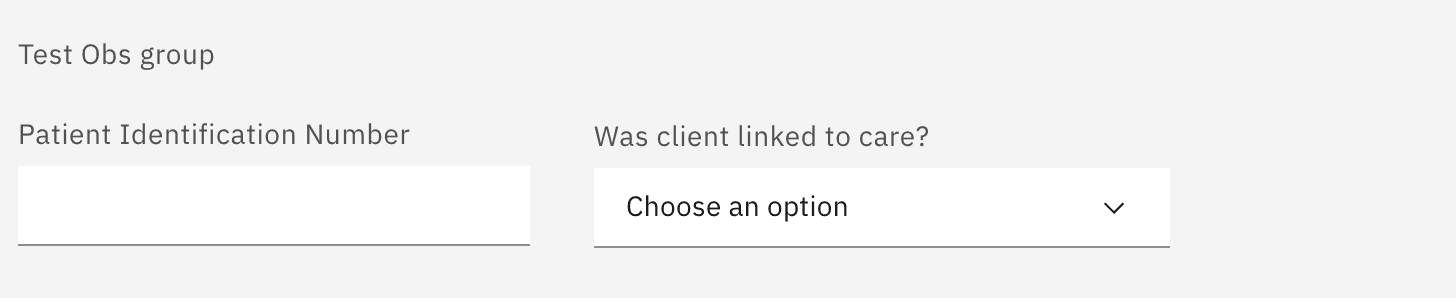

group
Used to create an obsGroup. This is used when you need to link multiple questions together.
{
"label":"Test Obs group",
"type":"obsGroup",
"questionOptions":{
"rendering":"group",
"concept":"8acba1d1-67cc-422c-961e-86d6b47bc45b"
},
"id":"testObsGroup",
"questions":[
{
"label":"Patient Identification Number",
"type":"obs",
"questionOptions":{
"rendering":"text",
"concept":"d3205b6a-7192-461f-9ea8-a1ac8af38964"
},
"id":"patientClinicIdentificationNumberGroup"
},
{
"label":"Was client linked to care?",
"type":"obs",
"questionOptions":{
"rendering":"select",
"concept":"e8e8fe71-adbb-48e7-b531-589985094d30",
"answers":[
{
"concept":"cf82933b-3f3f-45e7-a5ab-5d31aaee3da3",
"label":"Yes"
},
{
"concept":"488b58ff-64f5-4f8a-8979-fa79940b1594",
"label":"No"
},
{
"concept":"1067AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Unknown"
}
]
},
"id":"linkedToCareGroup"
}
]
}Renders:

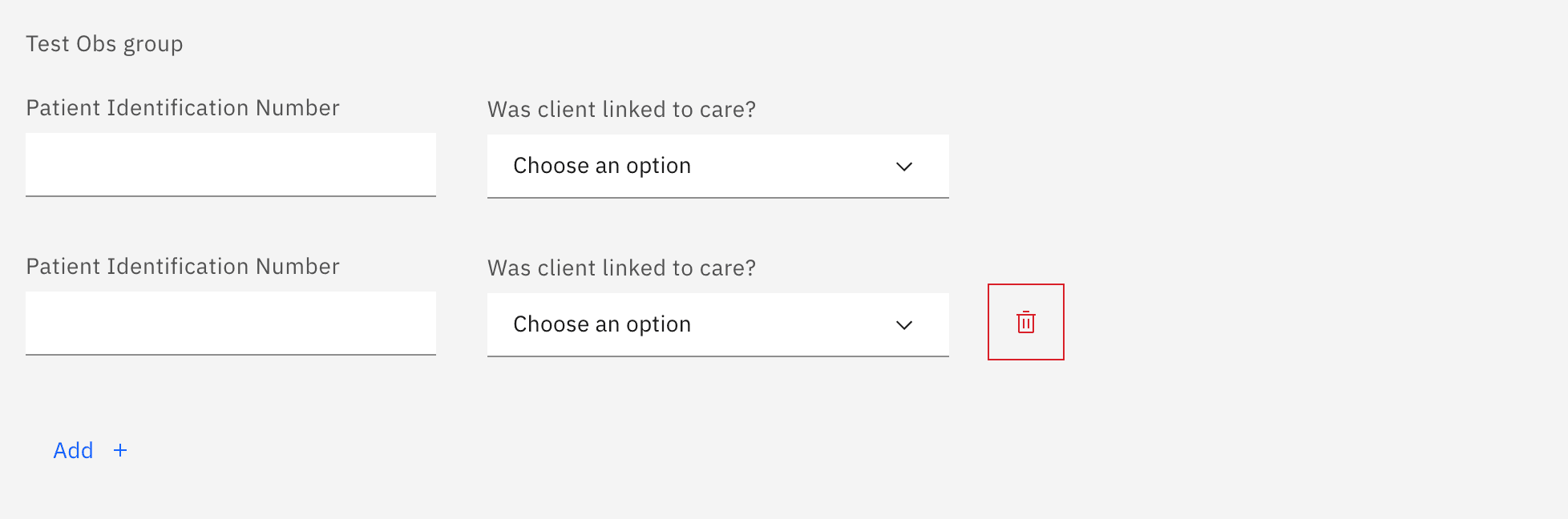

repeating
Renders a repeating group field.
{
"label":"Test Obs group",
"type":"obsGroup",
"questionOptions":{
"rendering":"repeating",
"concept":"8acba1d1-67cc-422c-961e-86d6b47bc45b"
},
"id":"testObsGroup",
"questions":[
{
"label":"Patient Identification Number",
"type":"obs",
"questionOptions":{
"rendering":"text",
"concept":"d3205b6a-7192-461f-9ea8-a1ac8af38964"
},
"id":"patientClinicIdentificationNumberGroup"
},
{
"label":"Was client linked to care?",
"type":"obs",
"questionOptions":{
"rendering":"select",
"concept":"e8e8fe71-adbb-48e7-b531-589985094d30",
"answers":[
{
"concept":"cf82933b-3f3f-45e7-a5ab-5d31aaee3da3",
"label":"Yes"
},
{
"concept":"488b58ff-64f5-4f8a-8979-fa79940b1594",
"label":"No"
},
{
"concept":"1067AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
"label":"Unknown"
}
]
},
"id":"linkedToCareGroup"
}
]
}Renders:
