Create a new form

Create a new form

Introduction

The React Form Engine (RFE) form builder platform simplifies and partially automates the process of generating user interface forms in OpenMRS frontends.

Links and ideas that are important to this text:

What is the RFE form builder?

The RFE form builder is found at the following addresses:

The RFE form builder is an automation tool/website for auto-generating form schema JSON files which can be later loaded into the Form Engine to auto-create micro-frontend user interface forms.

This means the UI/UX developer does not have to manually create the user interface forms. And any technical/or non-technical person can use the form builder to generate these form JSON files.

How to use the RFE Form Builder

Requirements:

  • Make sure the Google Chrome browse is installed. Any other browser can also be used.

Form builder URL in address bar

In the address bar, enter the form builder URL: OHRI https://ohri-dev.globalhealthapp.net/openmrs/spa/login (opens in a new tab) or RefApp https://dev3.openmrs.org/openmrs/spa/form-builder (opens in a new tab)

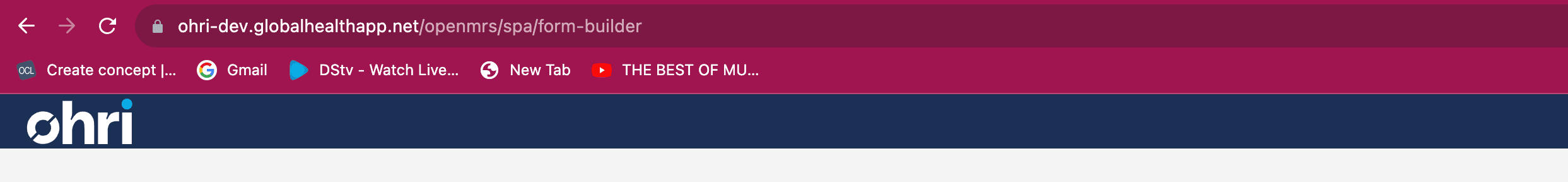

Form builder URL

The main login form will open:

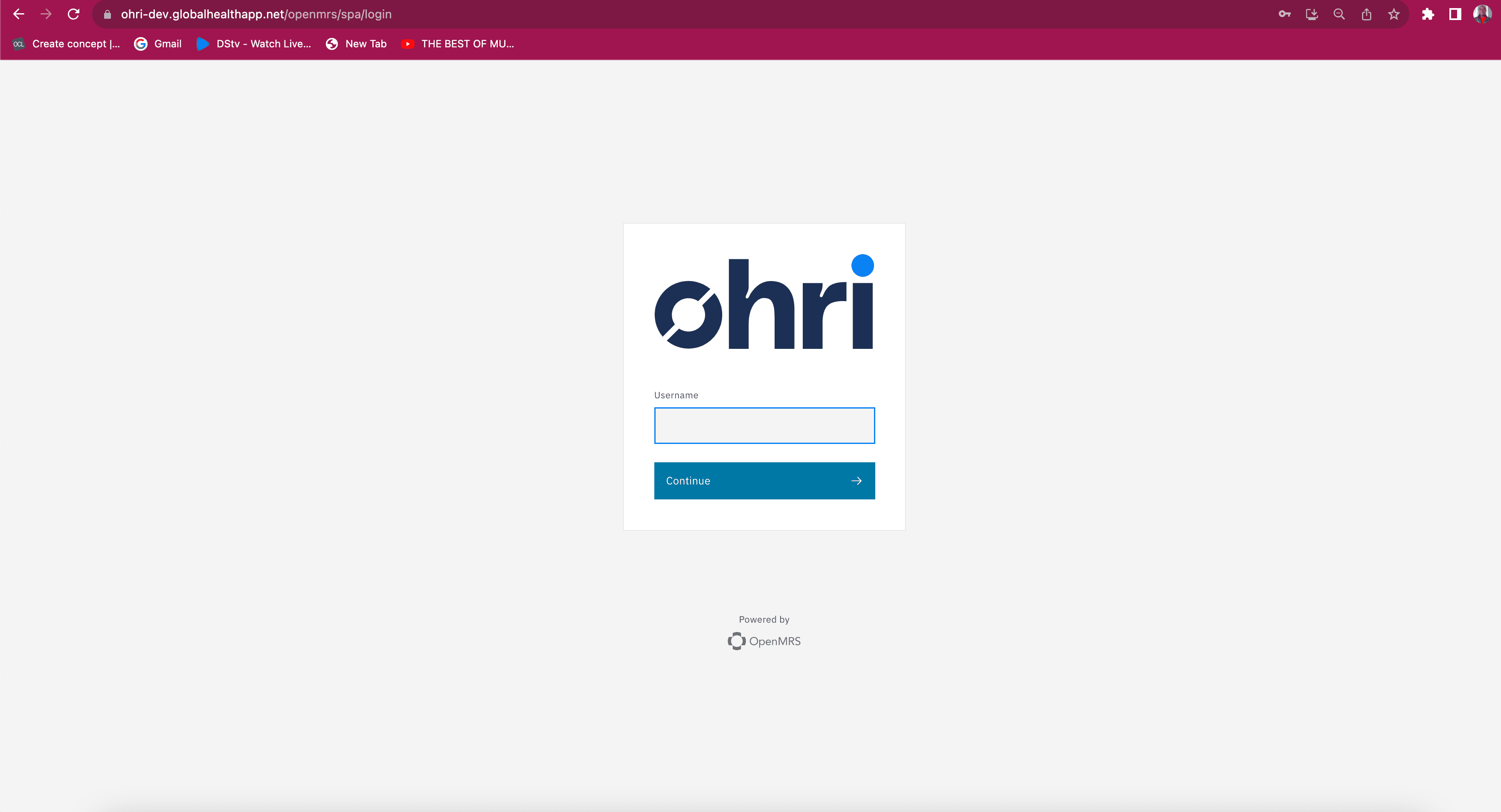

Login page

After the login form is loaded, enter all the required details in the inputs:

  • OpenMRS server URL: This is the OpenMRS backend server installation where your concepts are stored.
  • Username: Use the default i.e. admin
  • Password: Use the default i.e. Admin123

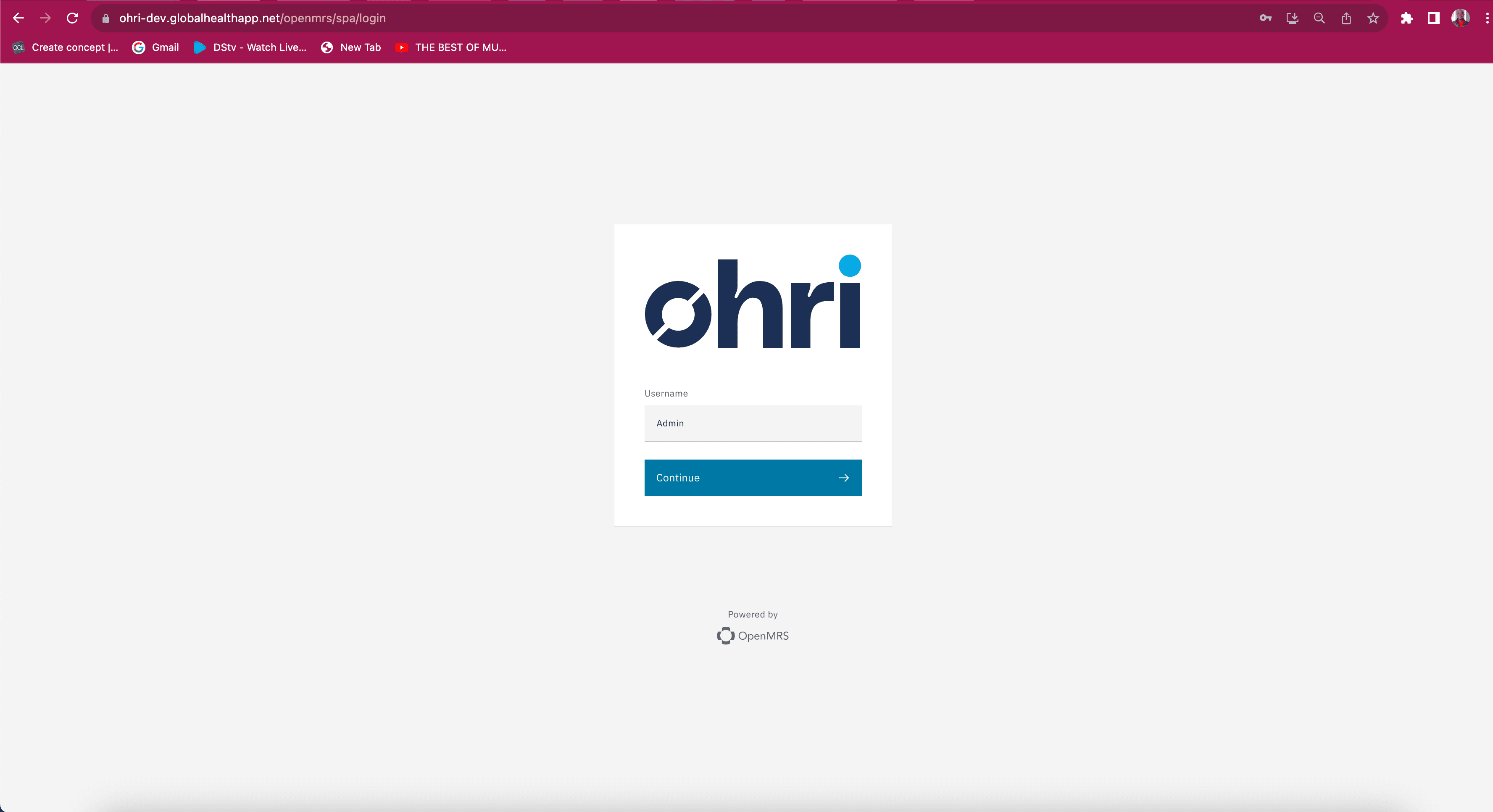

Login credentials

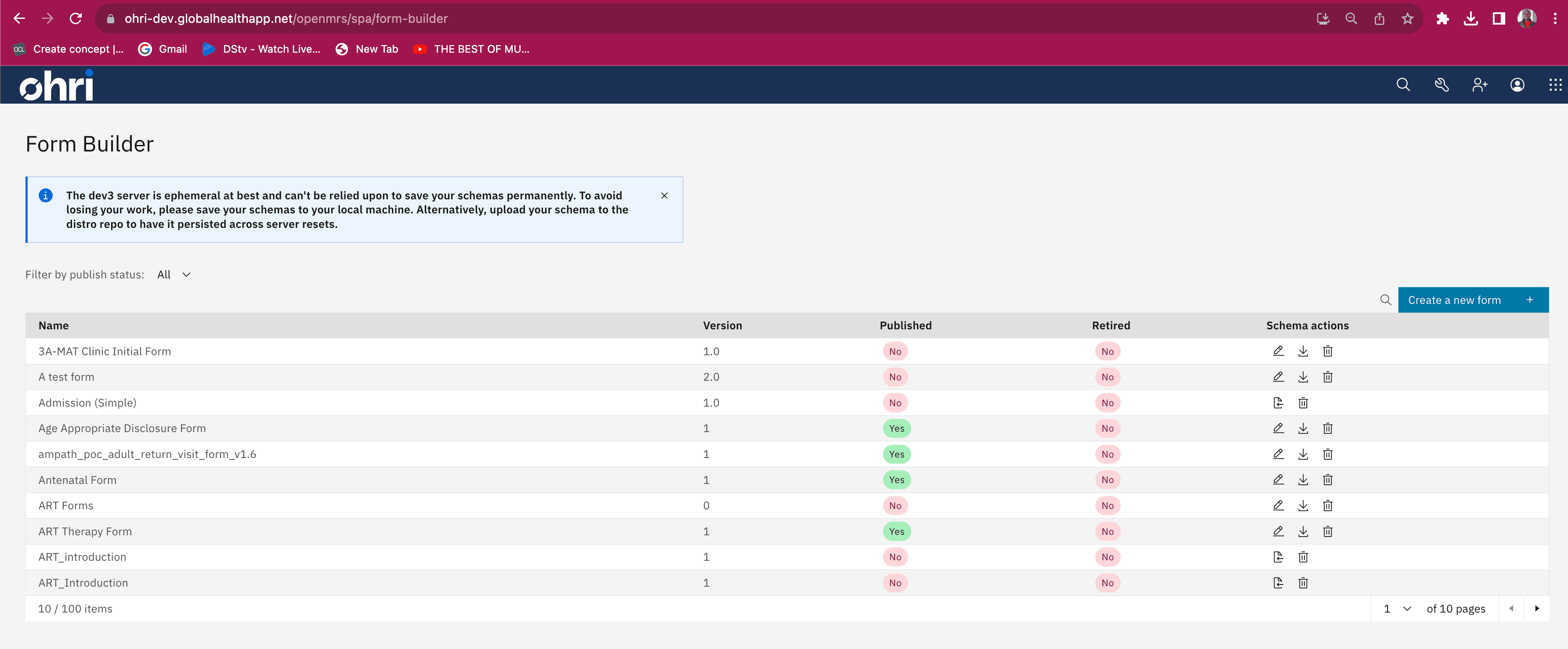

With the correct details entered above, the platform will log you in. You will land on the dashboard illustrated below:

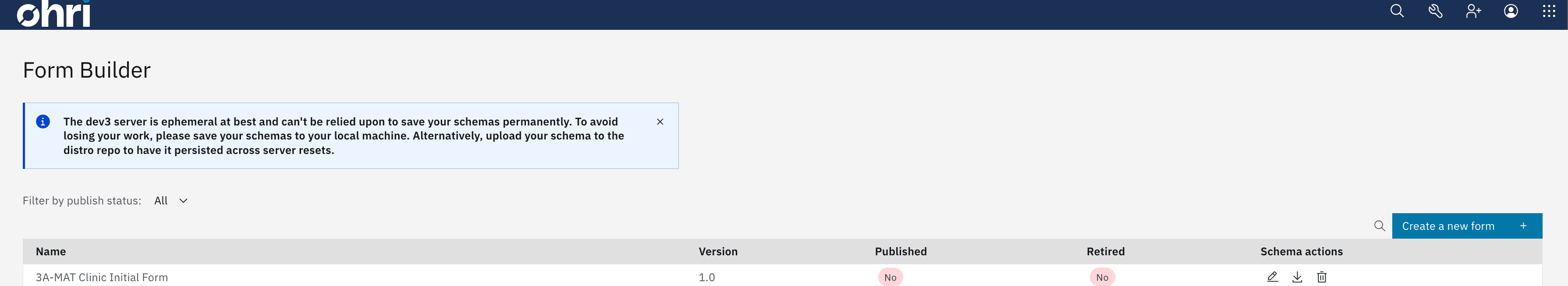

Forms dashboard

Now, click on Create New Form in the top left corner to create a new Form schema.

Create new form button

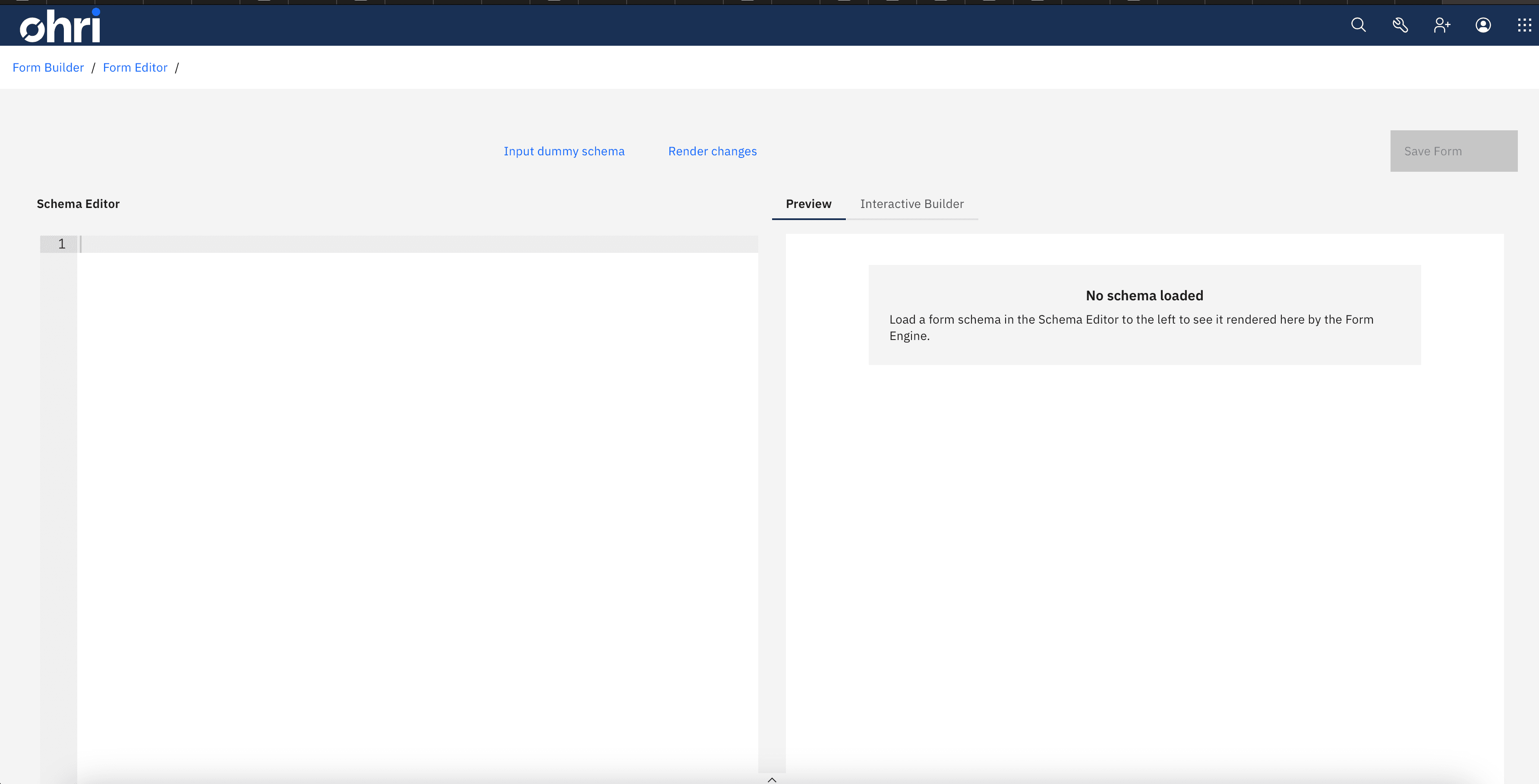

Clicking the button will land you in the interface shown below. Note the preveiw and the Interactive Builder tabs.

Create new form

Click on the Interactive Builder tab to open the builder page shown below:

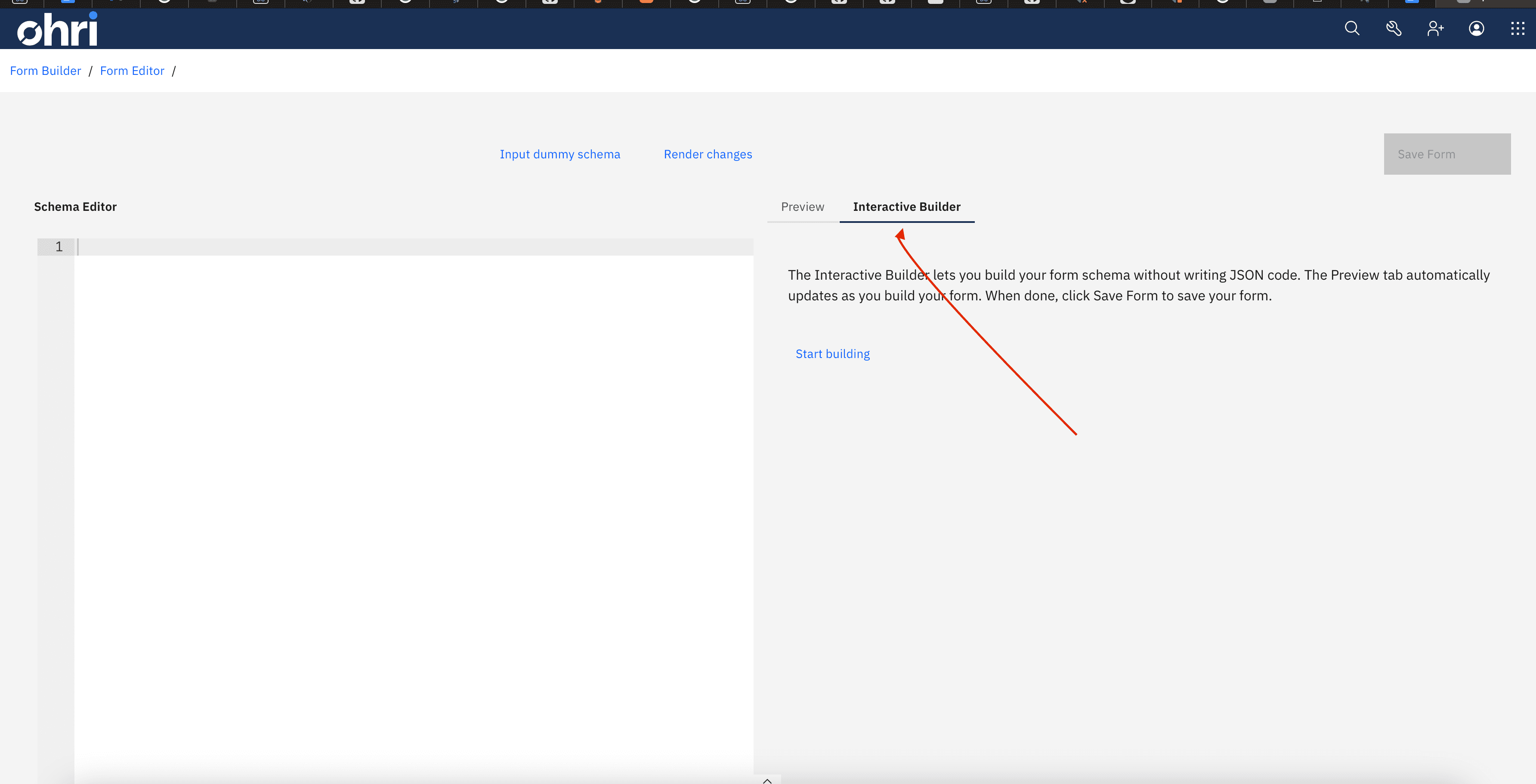

Interactive Builder

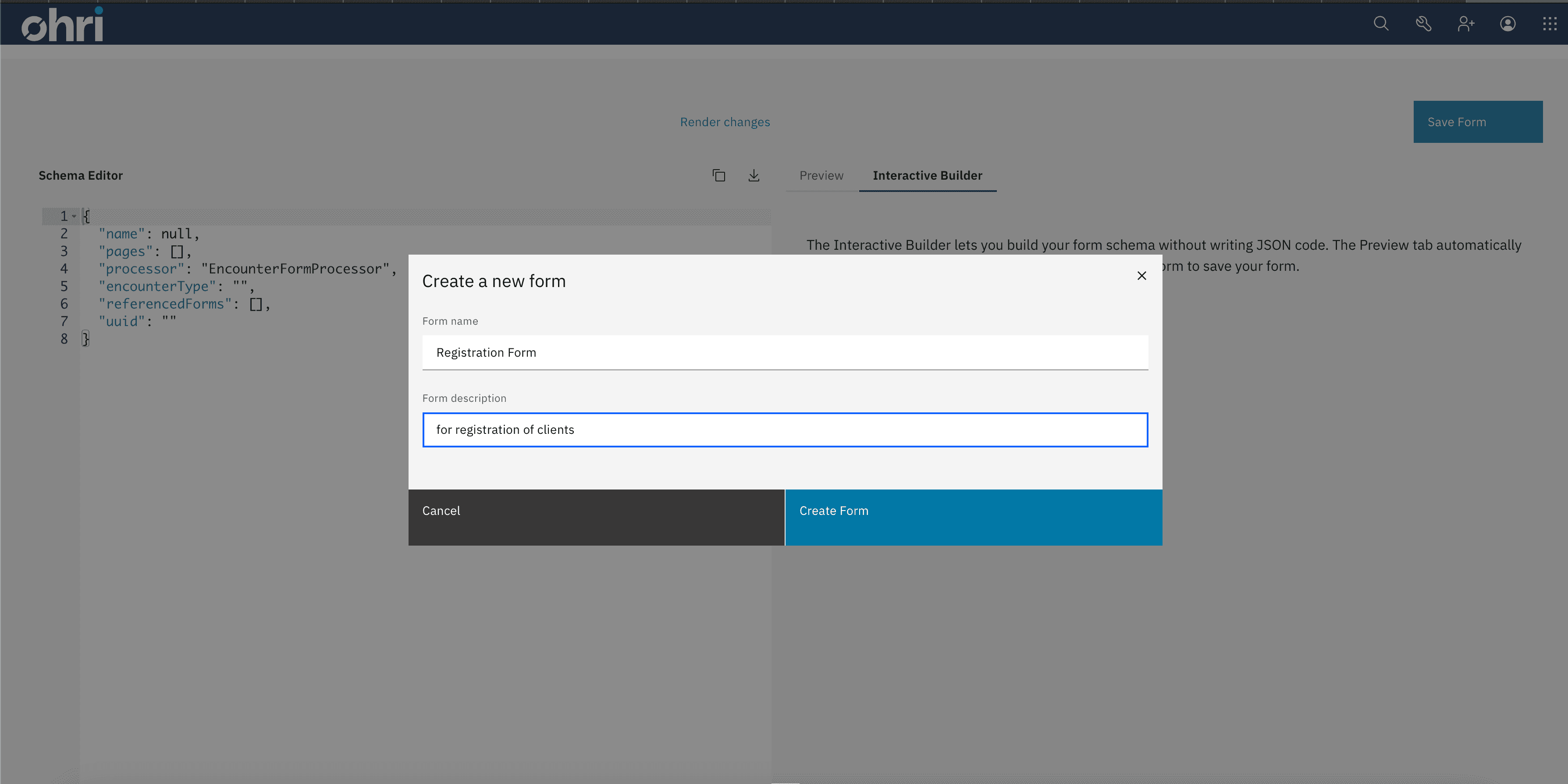

Click on the Start building text link. and a popup window asking for the form details will show as below:

Form name

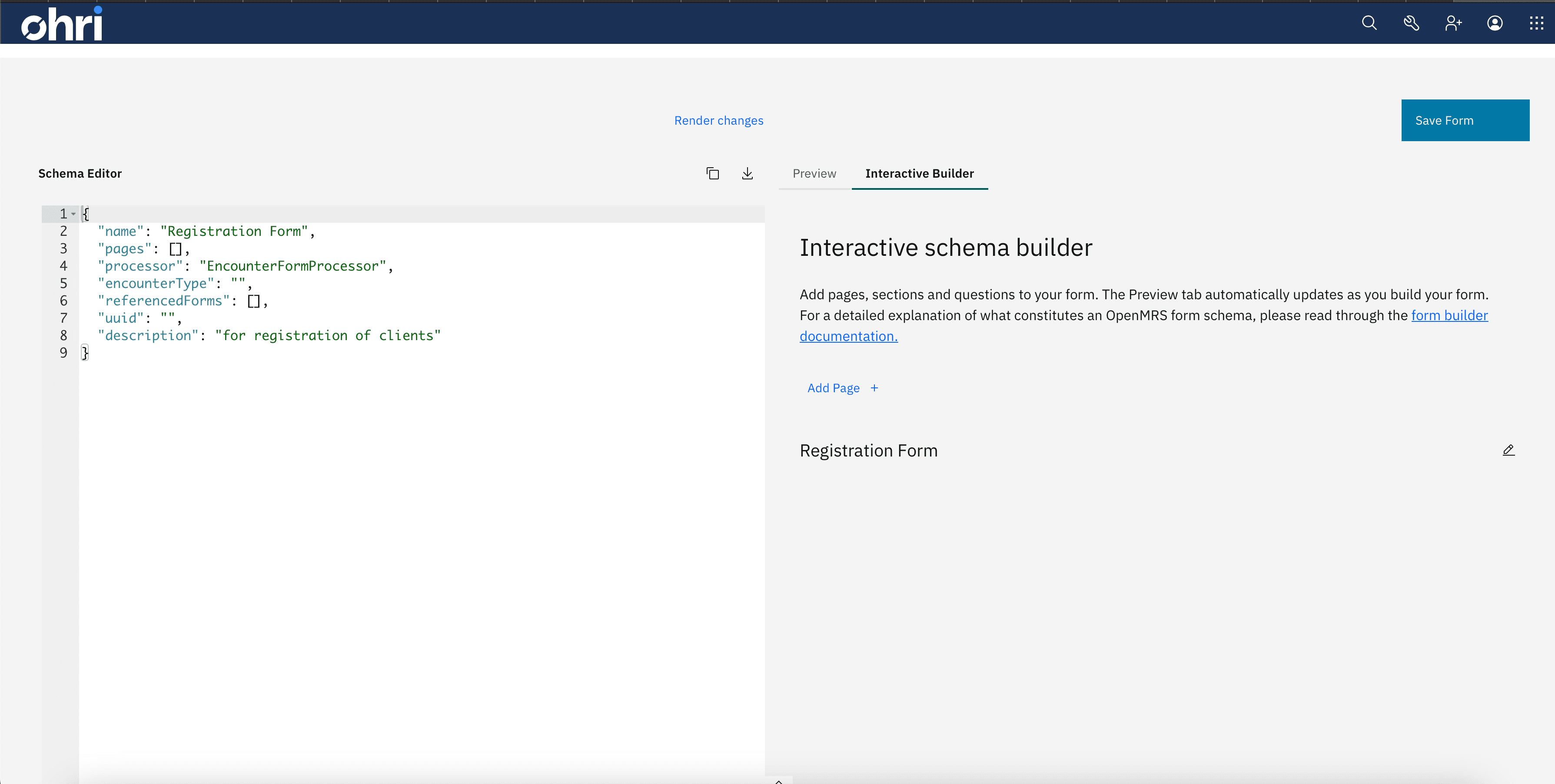

Click on the add page text link below to add a page to your form

Add page

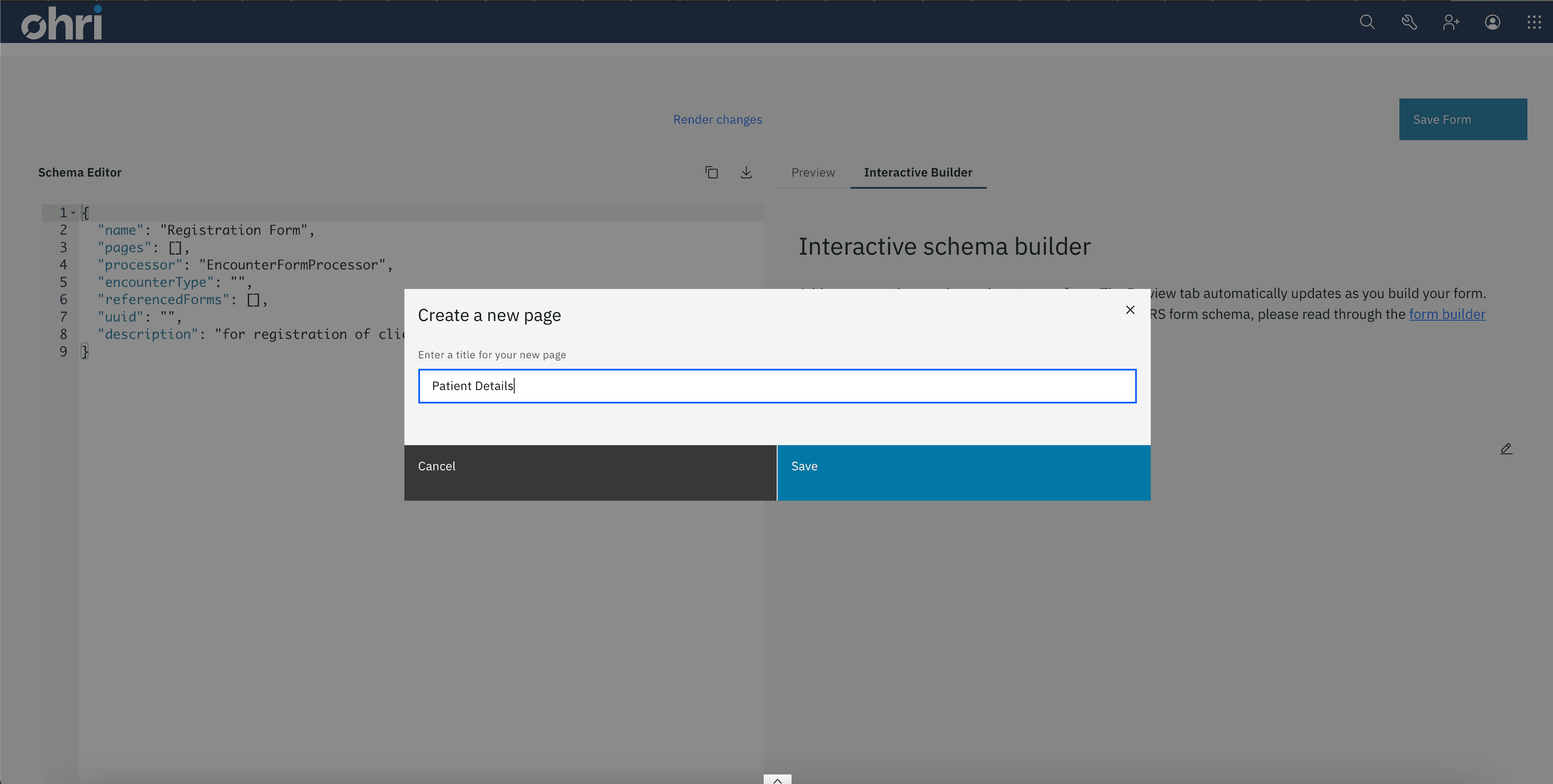

Add the page name in the pop up text box.

Page

Click on the Save button to successfully save the page and proceed.

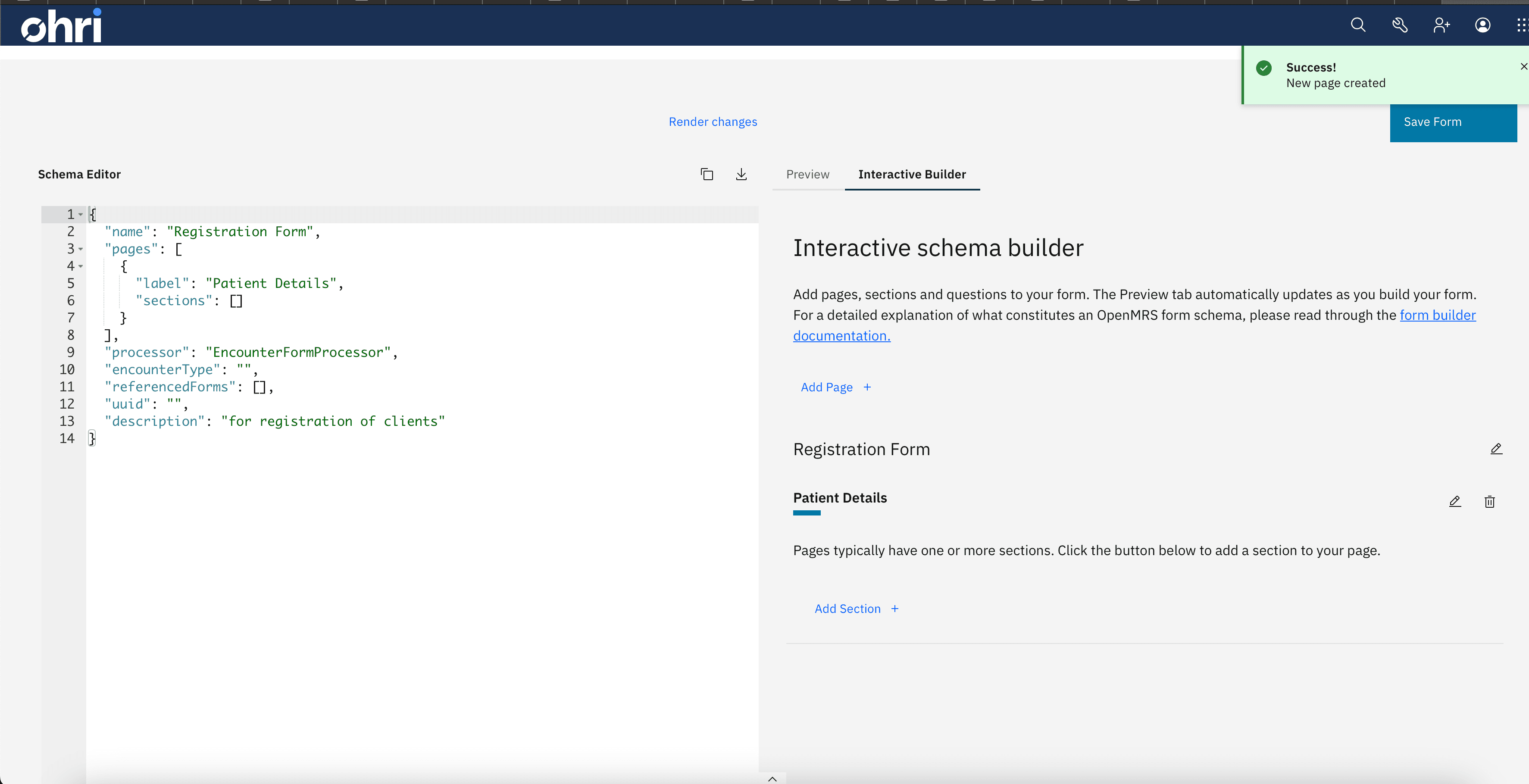

Save page

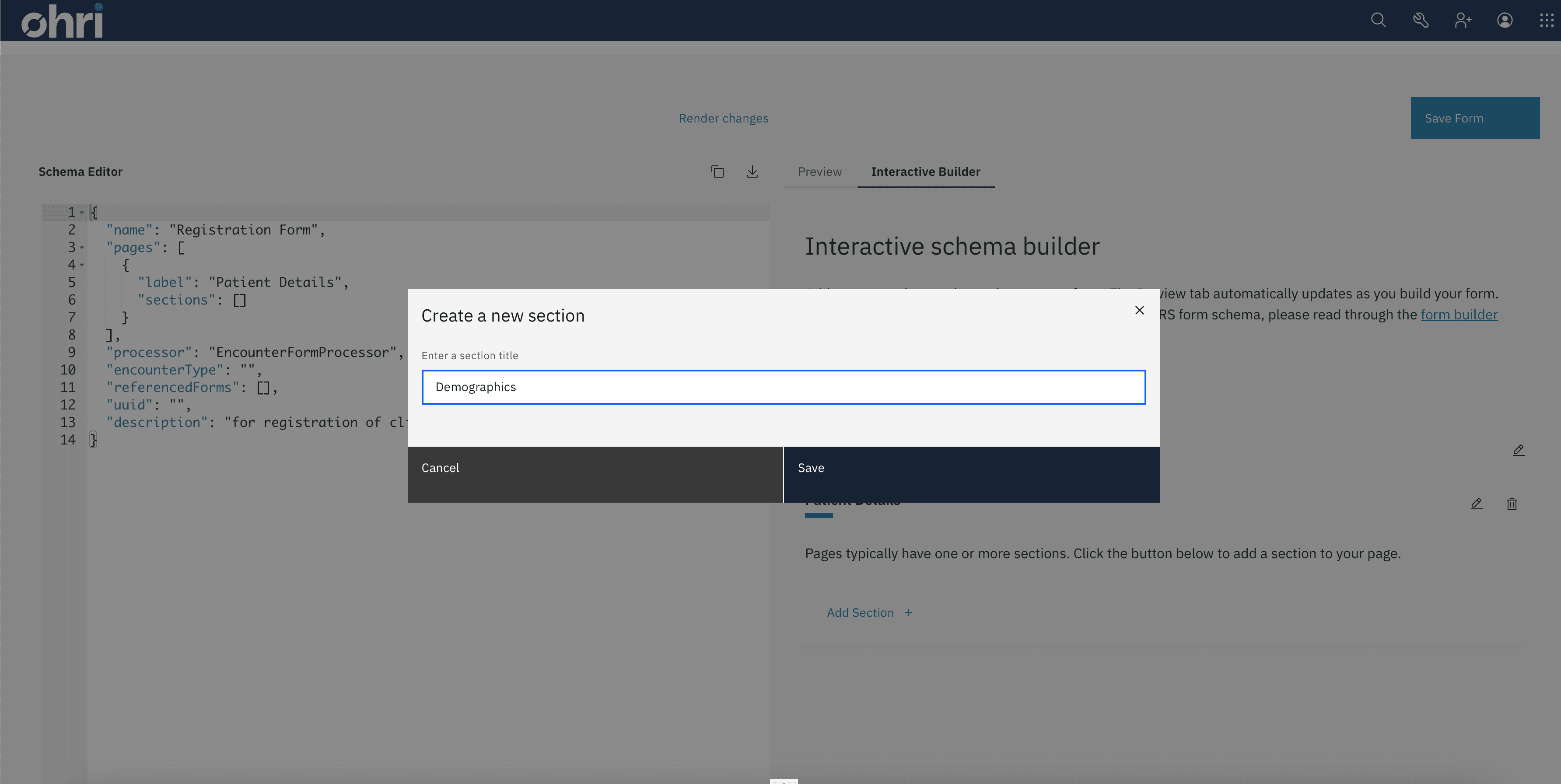

Next, click on the Add section text link to add a section to your form.

Create section

Click save to save the section added to form.

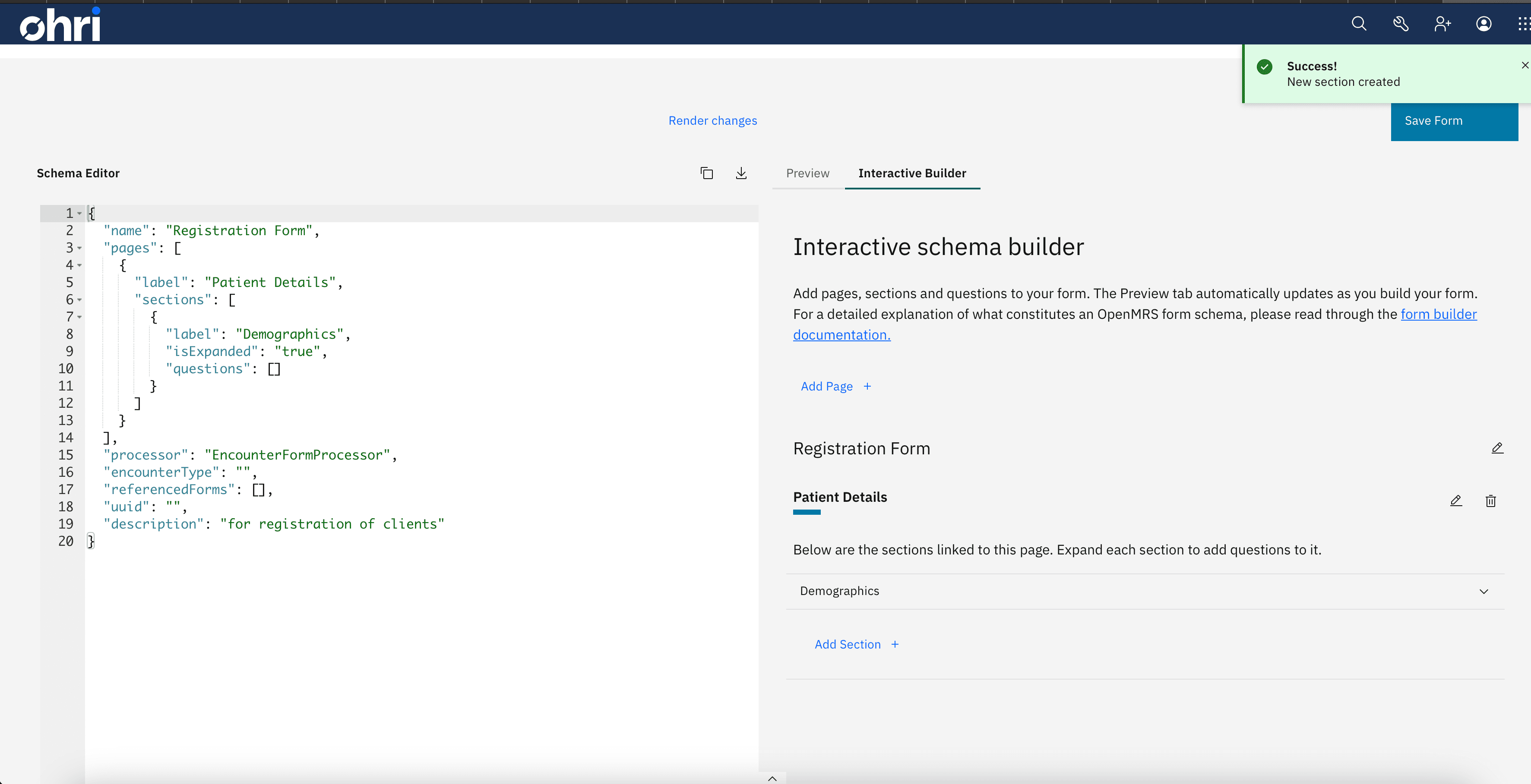

Save section

Click on Add question text link to add a question to your form. A question has several metadata which you must add on the popup form entry. These include:

  • Label
  • Question ID: Must be unique
  • Question type
  • Field Type
  • Backing Concept
  • Mappings: Auto generate from concept selected

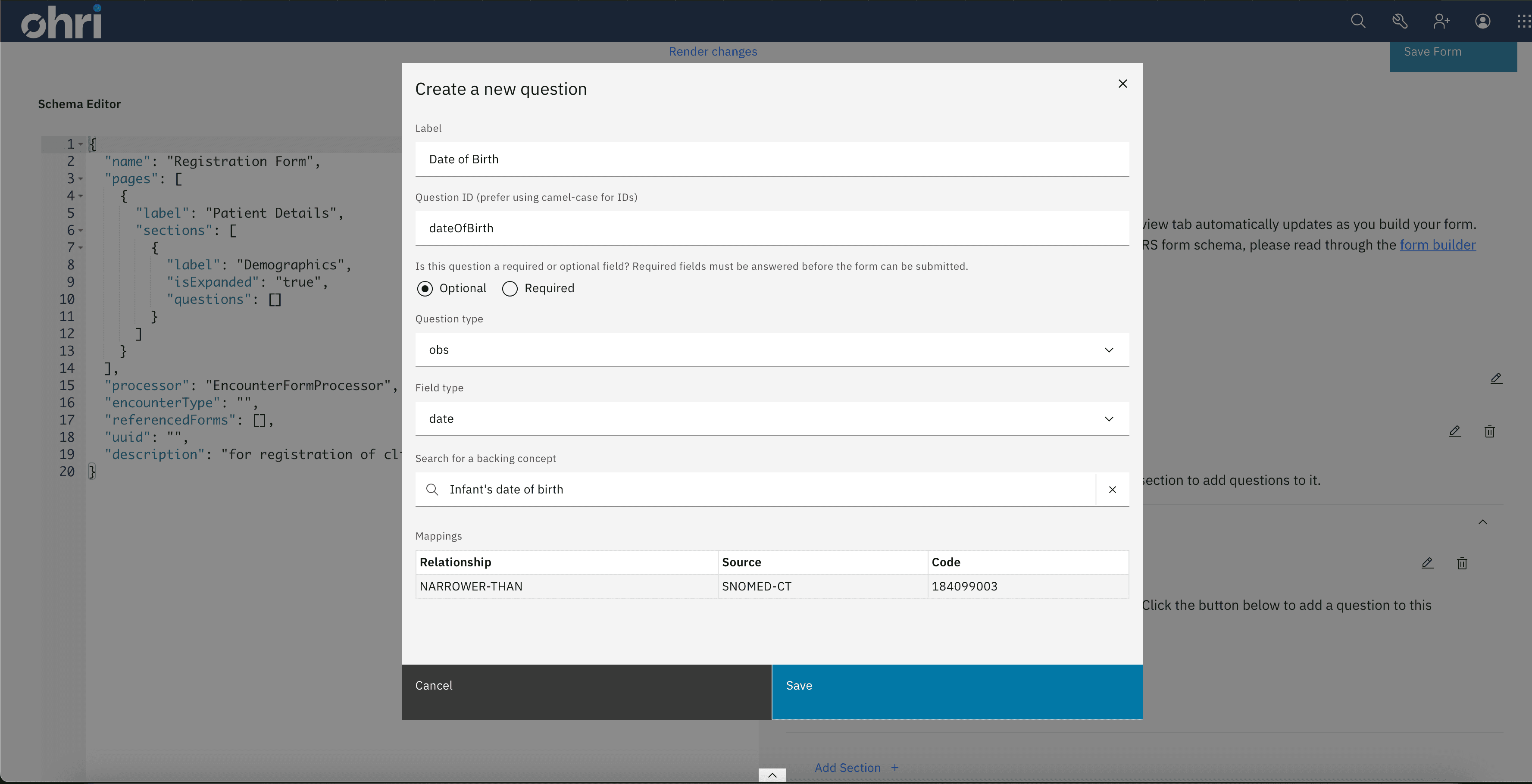

Question

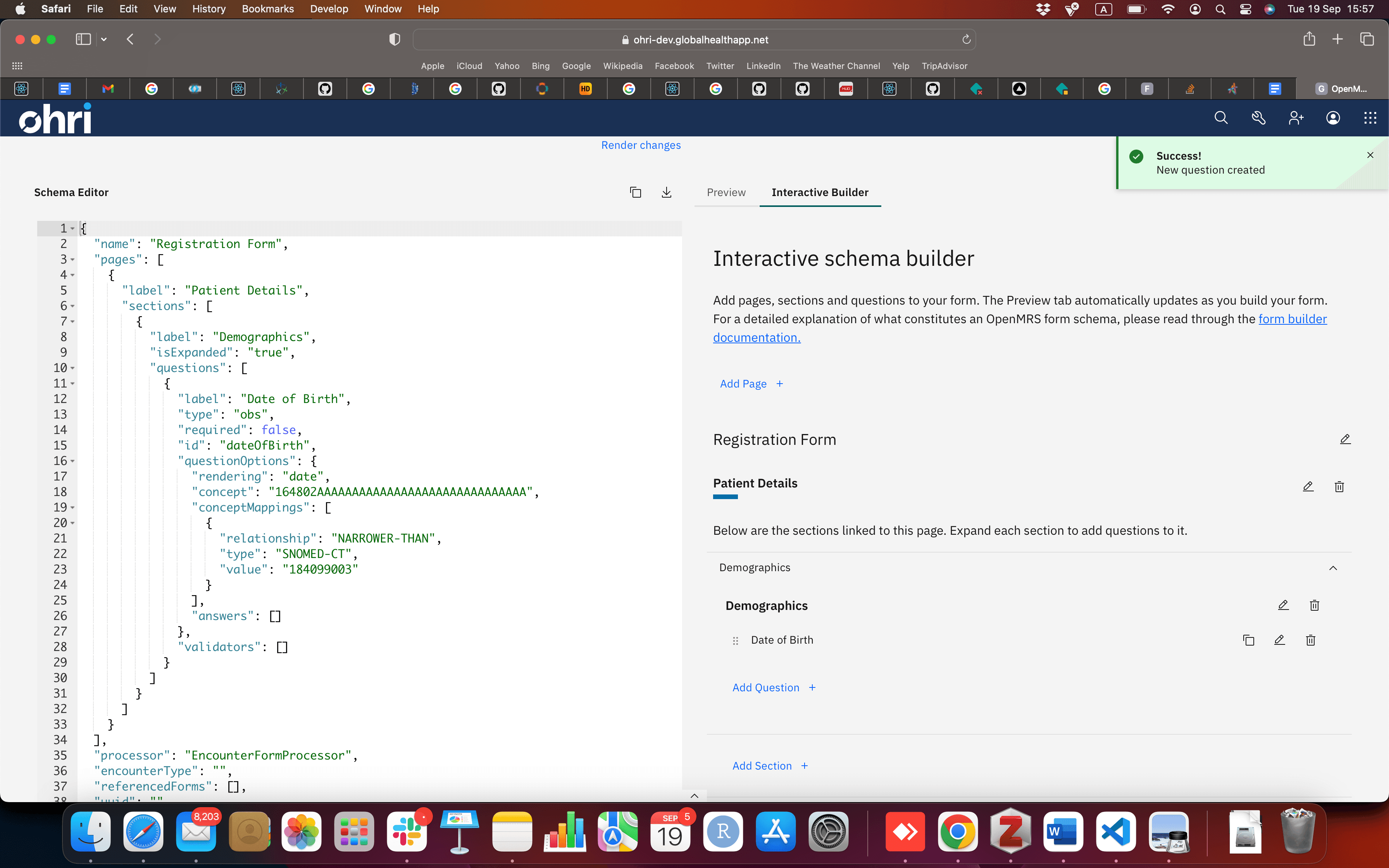

Click Save to save the question

Save question

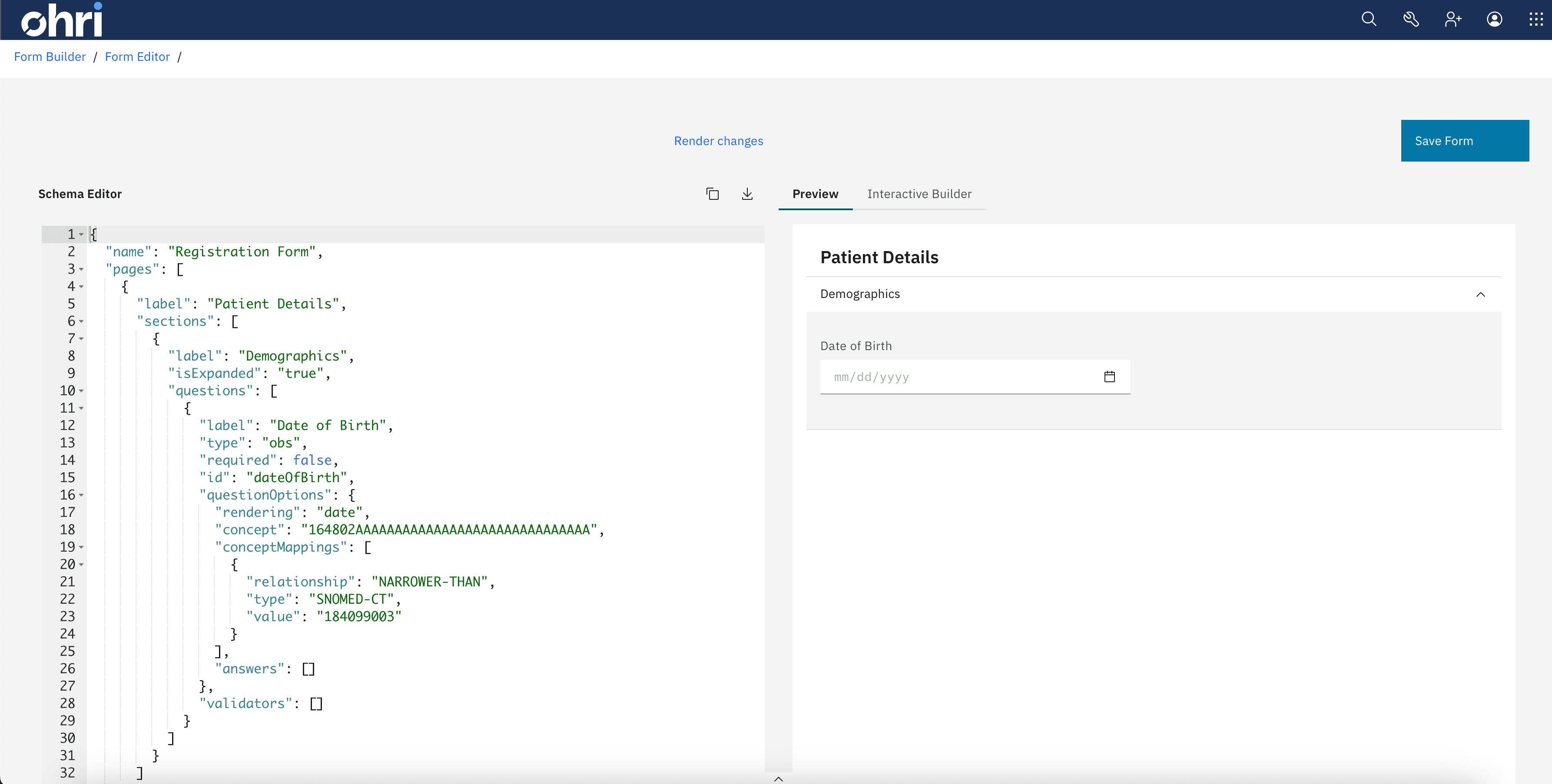

Click on Preview Form tab to view how the form will look like when rendered.

Preview form

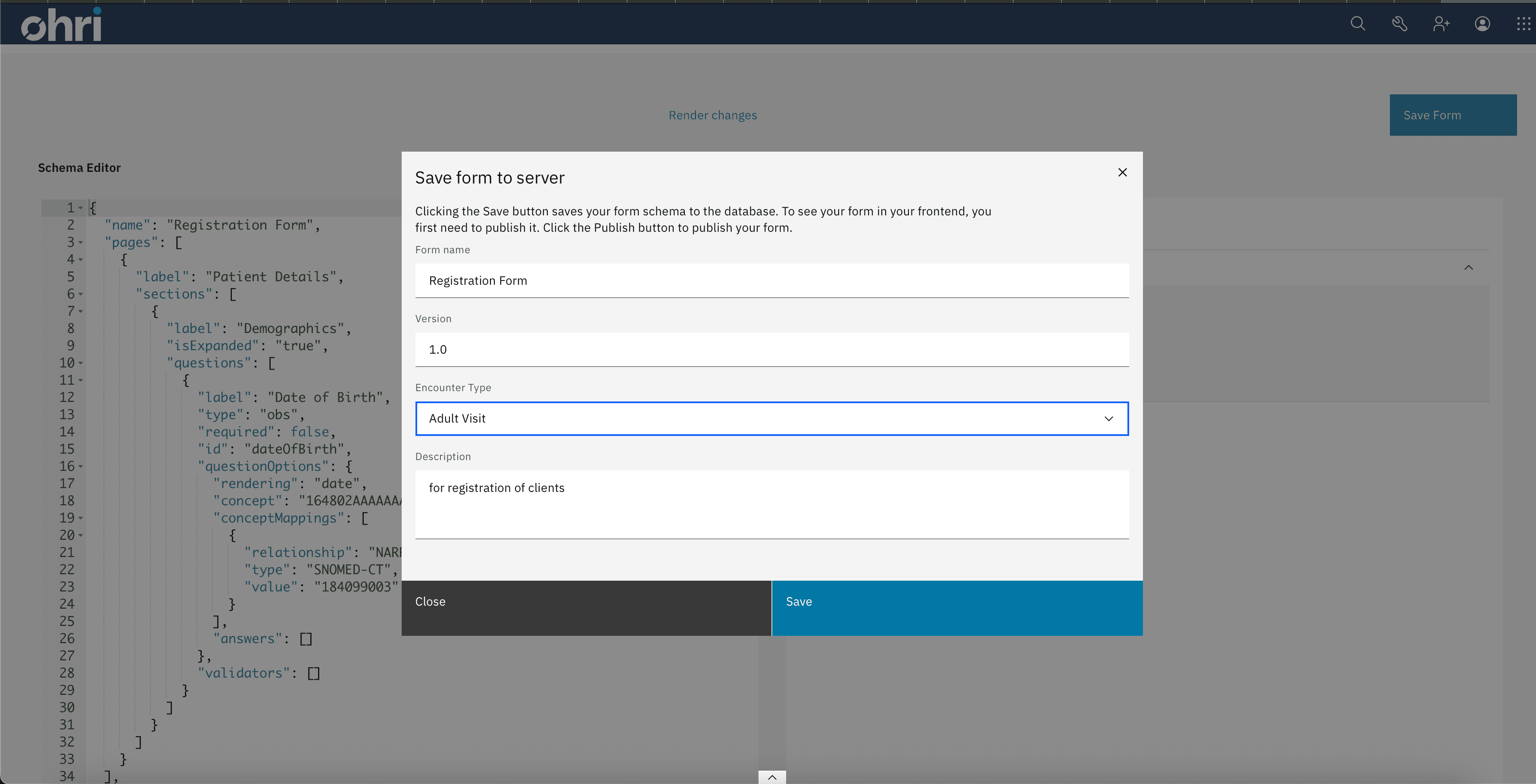

Click on the Save to save your final form. A popup form entry will appear to allow you enter details that include:

  • Form name
  • Version
  • Encounter Type
  • Description

Save form

Finally, the form is ready for adding to the backend for rendering.

Preview form
